V2X Charging

Get ready for bi-directional EV charging.

Leverage vehicle-to-home and vehicle-to-grid smart charging technology to balance your network, reduce emissions and generate revenue.

Types of V2X

For domestic cars.

Vehicle-to-Grid (V2G)

Drivers earn money by taking advantage of fluctuating energy demand and pricing through ‘selling’ power back to the grid at peak times or during occasional grid stress events.

Vehicle-to-Home (V2H)

Drivers maximize energy bill savings by charging with cheaper, greener electricity using their car batteries to power their homes and avoid importing power when electricity prices are highest.

Backup Power Supply & Vehicle-to-Load (V2L)

During a power cut, when a home becomes disconnected from the grid, V2X can turn a driver’s car into an emergency power supply – acting as a generator.

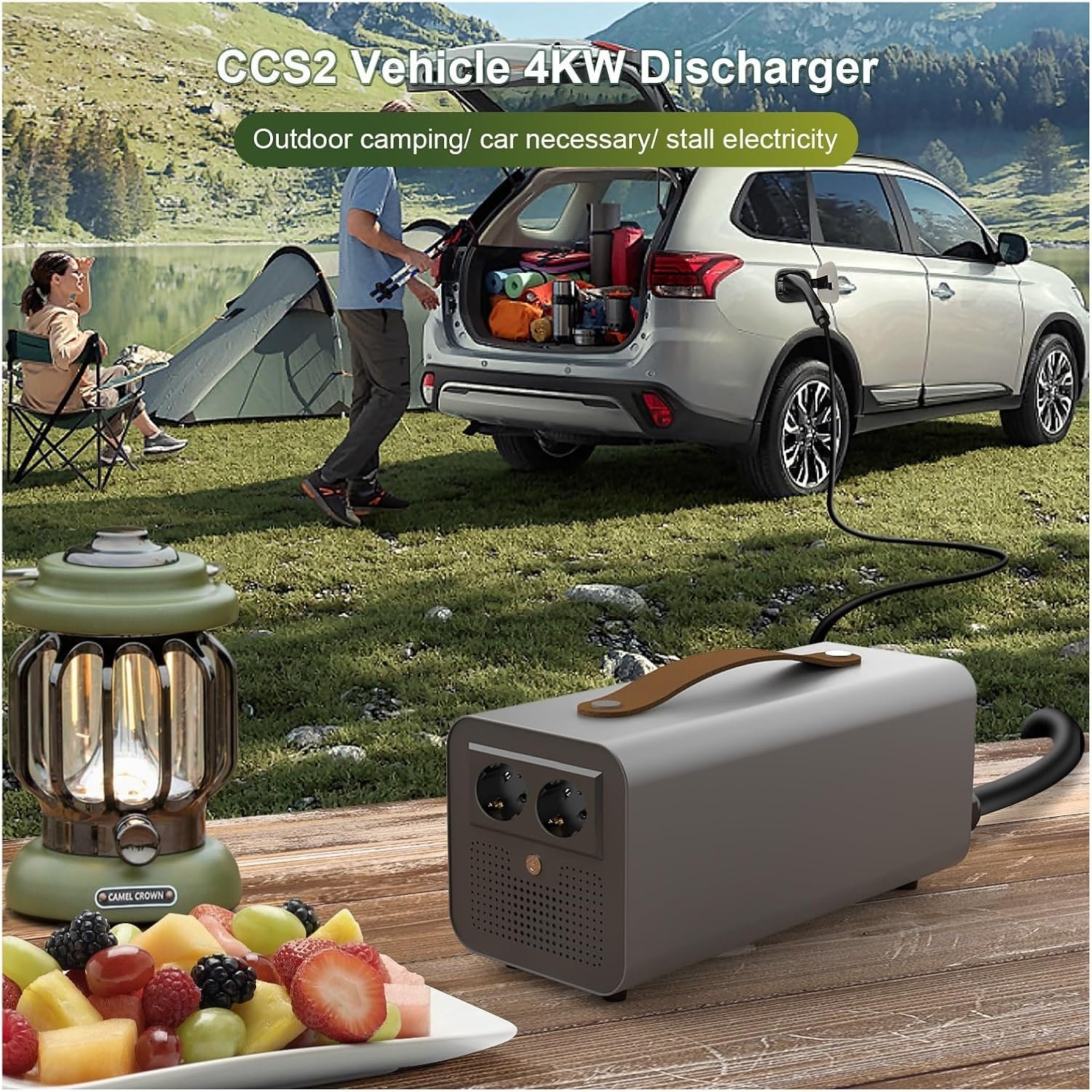

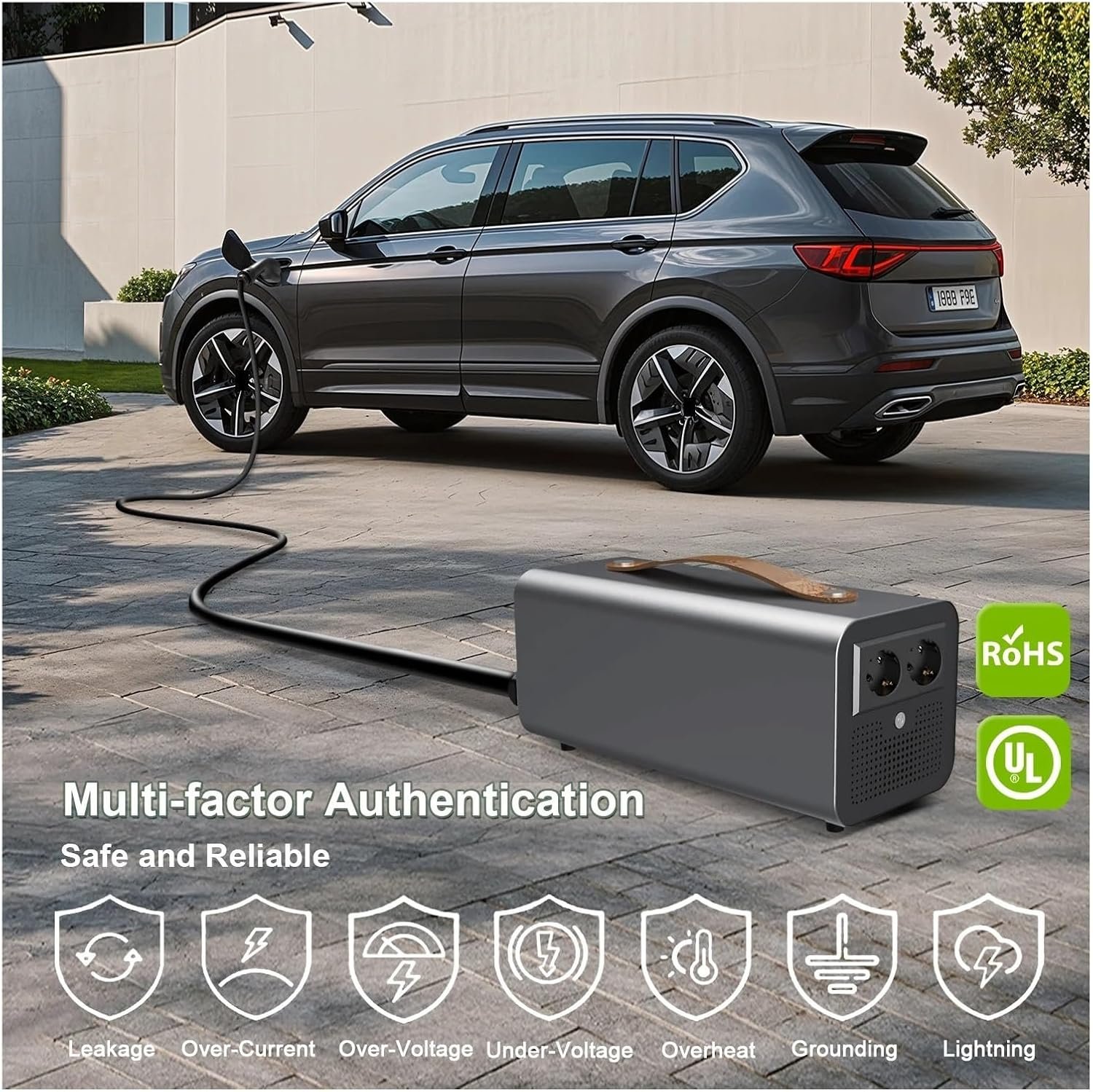

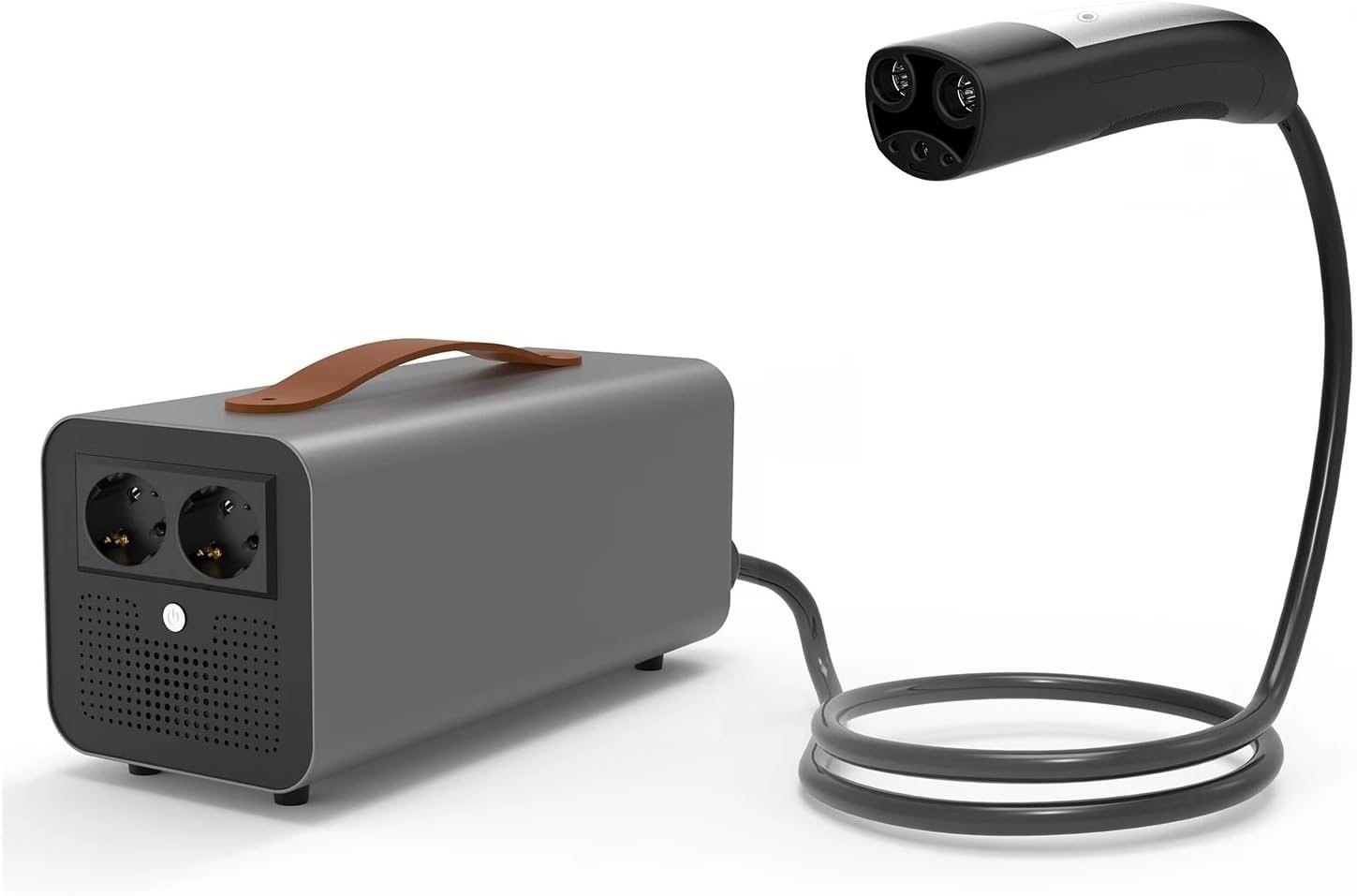

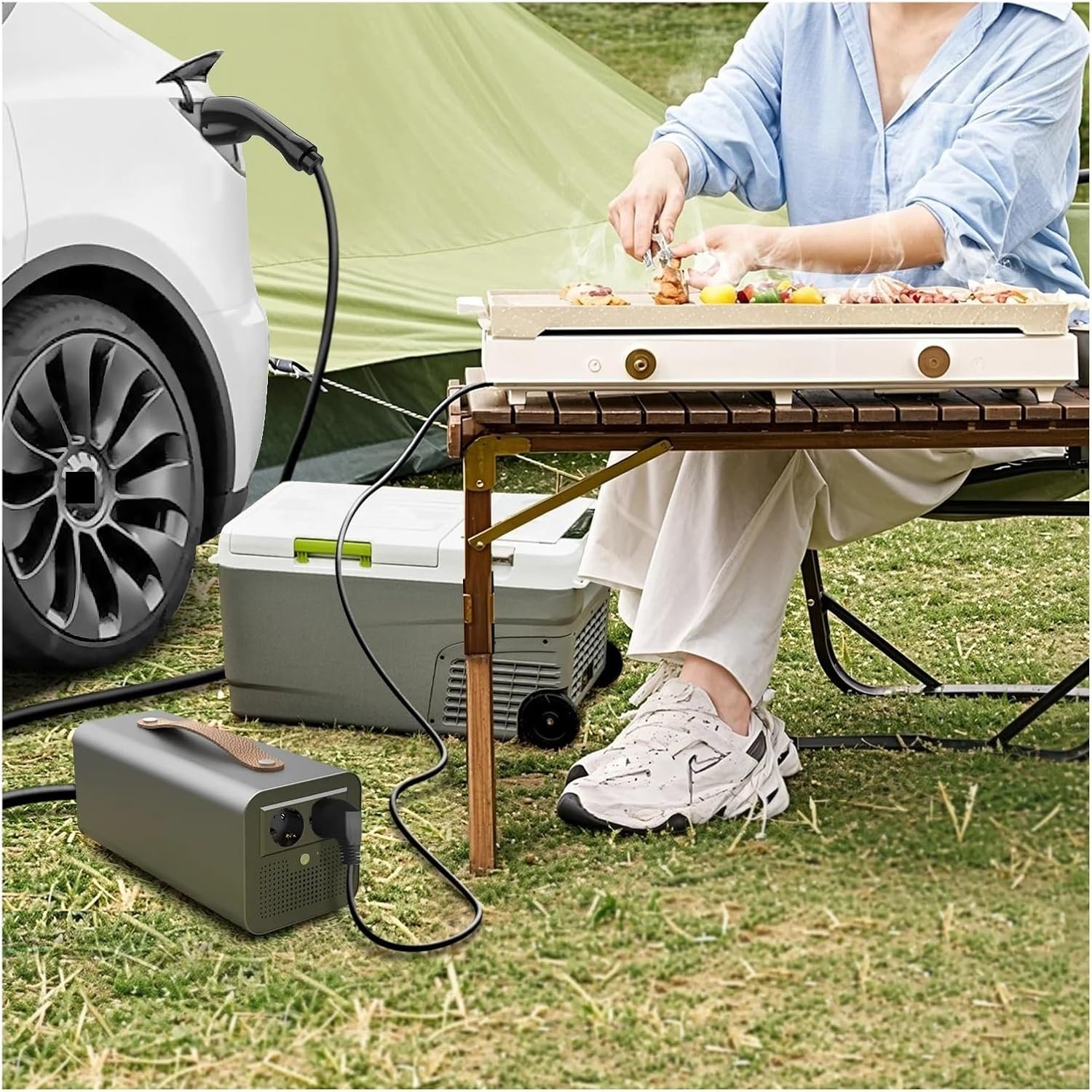

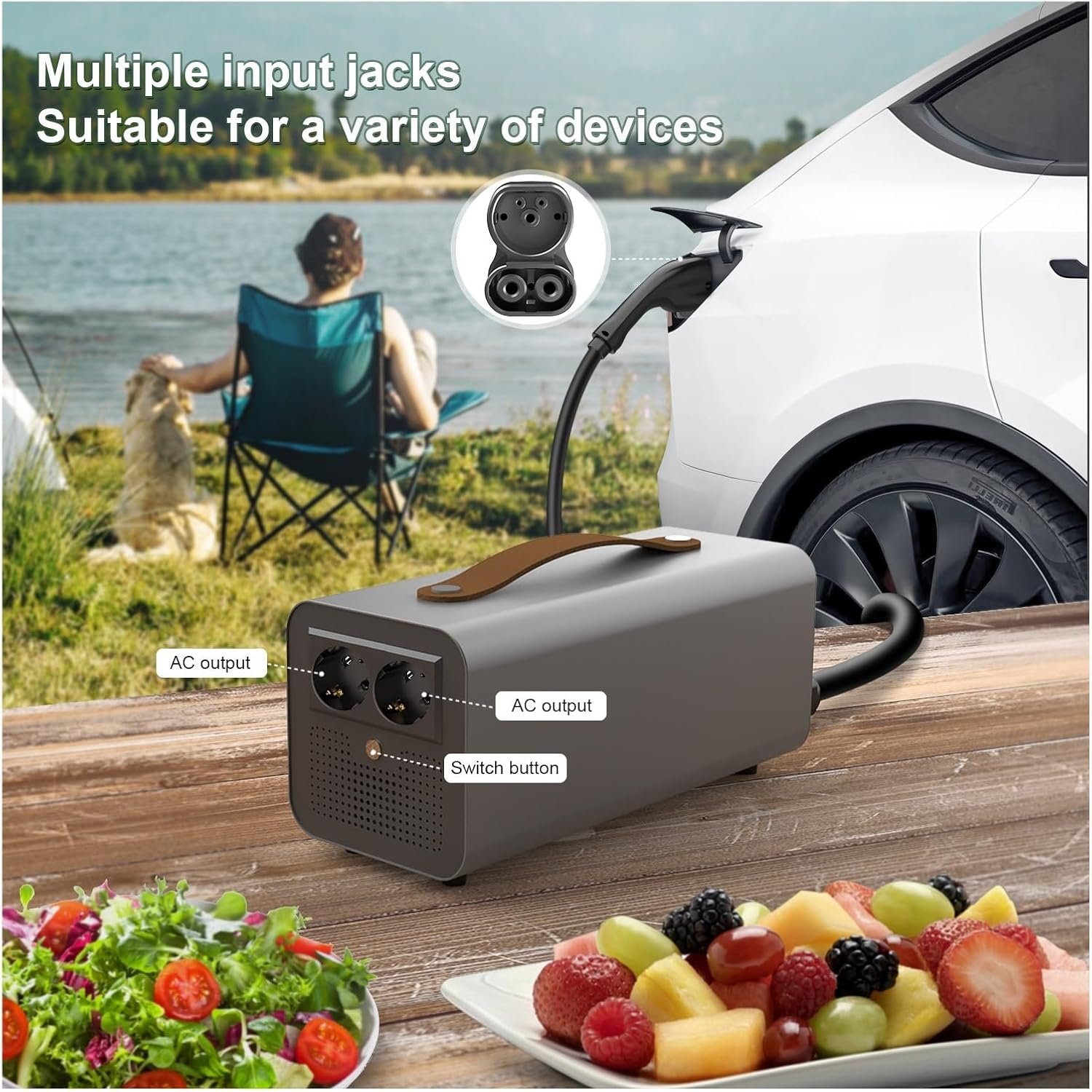

CCS Car DC V2L Discharger For Tesla(Tesla EU Socket)

Key Features:

High Power Output: Up to 4KW for refrigerators, lights, and other devices
Safety Assurance: Undergoes 20 tests for safe use
User-Friendly Operation: Easy to start-up and shutdown

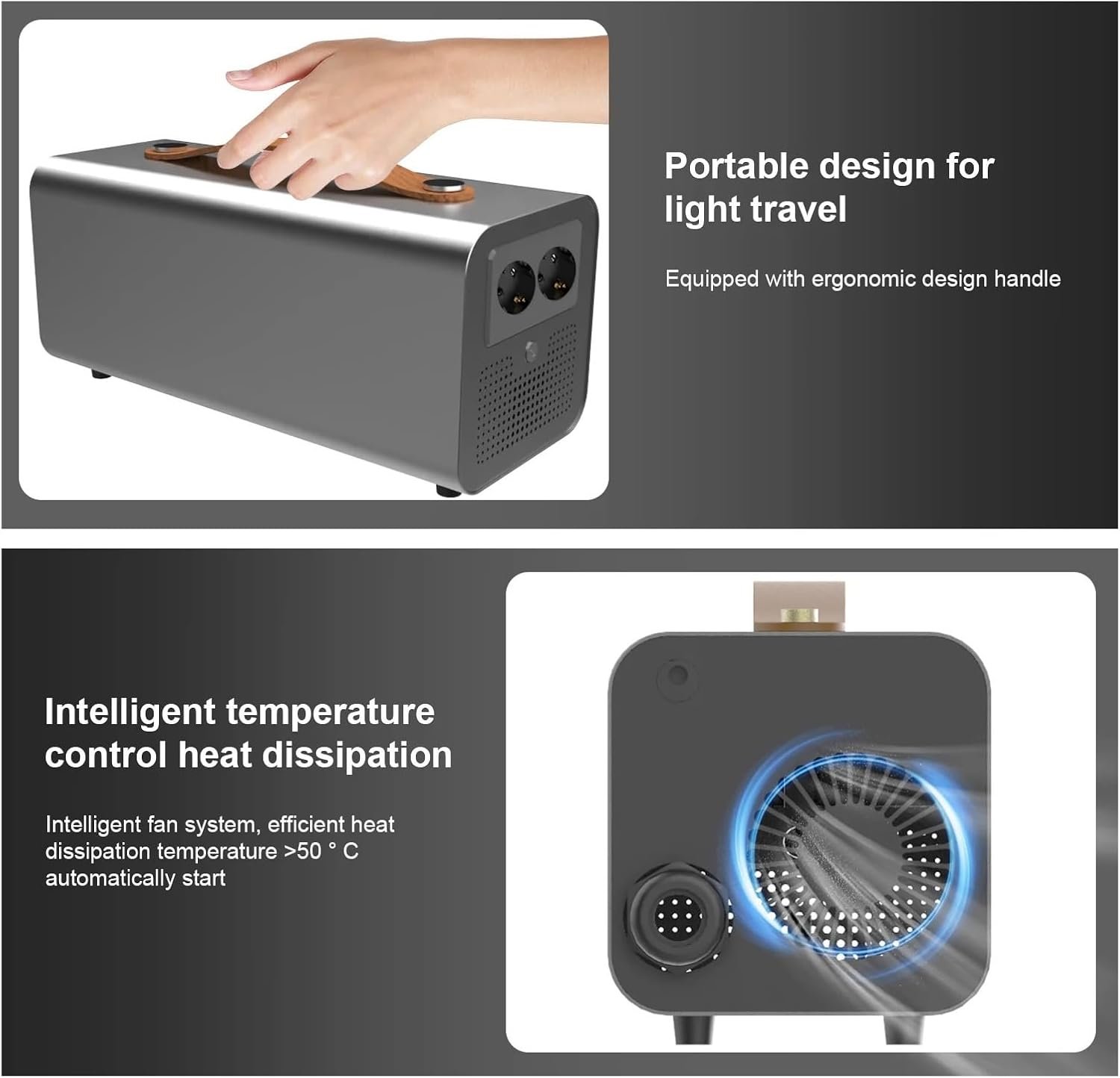

Portable Design: Handle for convenience during camping and emergencies
Worry-Free Use: Backup USB ensures compatibility even after software upgrades

V2L Discharge Principle:

Powered by three 18650 batteries; internal inverter converts DC to AC power for standard appliances.

Compatibility:

Works with Tesla Model 3, Model Y, Model S, and Model X with CCS functionality.

V2L Discharge Function:

Operable when Tesla battery level is between 20% and 95%.

Usage Instructions:

Wait for system startup before connecting to the car.
To shut down, disconnect the load, turn off power switch, unplug, and wait 30 seconds.

Power On:

Press button for system start-up.
Indicator lights signal readiness for device discharge.

Power Off:

Disconnect loads, press and hold button, unplug, and wait for auto-shutdown.

Note: Indicator lights indicate system status.

Precautions:

Avoid using in rainy conditions to prevent damage.
Ensure ventilation and avoid blocking air outlets and fan for proper operation.
Do not attempt to open the main unit as it will void warranties.
Charge internal battery for 30 minutes with DC12V power supply if unused for a long time.

Product Specifications:

Electrical Performance	Up to 4KW power output (calculated as 18A * 220V), 16A current, AC Voltage: 220V, Input DC Voltage: 320-420V, Insulation Resistance ≥1000MΩ
Mechanical Performance	Durable with over 10,000 cycles, non-charging status
Environmental Performance	Operates in temperature range of -65°C to +125°C, with MIL-STD-202 standards for vibration and corrosion resistance
Materials	Aluminum Alloy shell, Thermoplastic insulator, Rubber sealing ring
Eco-Performance	Operational at -30℃ to +50℃, IP22 protection rating
Dimensions	Cable Length: 1.9m, LWH: 30cm * 12.5cm * 12.5cm, Weight: 5kg
